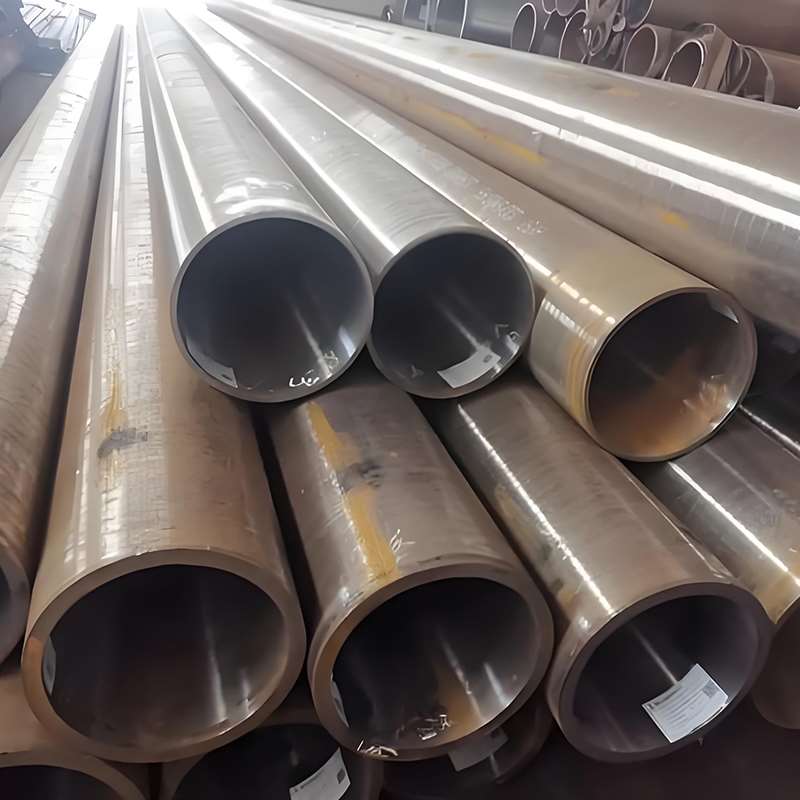

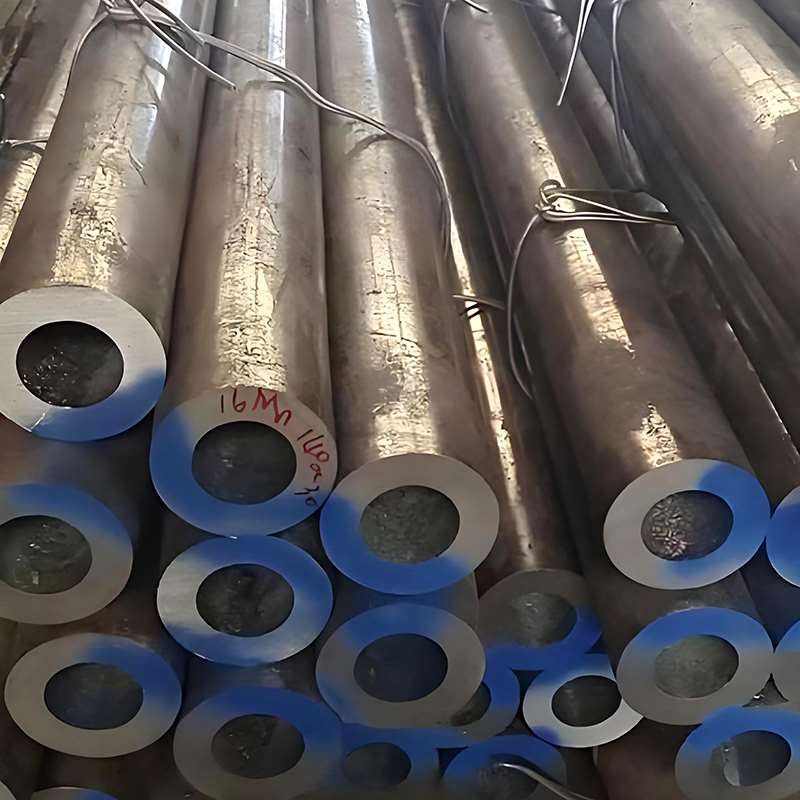

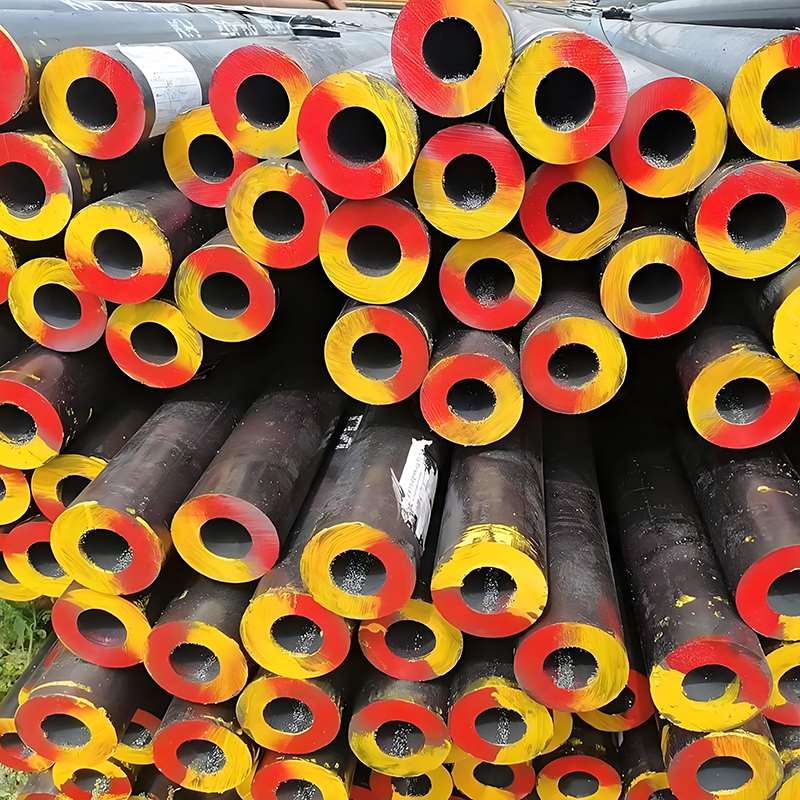

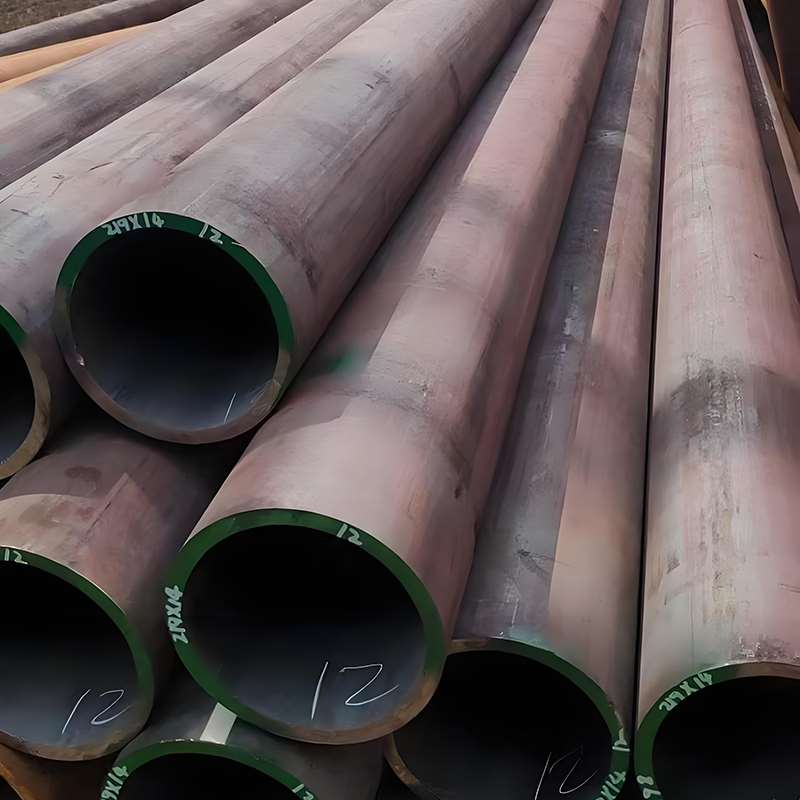

I. Introduction to ASTM A335 P22 Alloy Steel Pipe
ASTM A335 is a standard for seamless alloy steel pipes established by the American Society for Testing and Materials (ASTM), applicable to boilers, pressure vessels, and heat exchanger piping for high-temperature service.
This standard primarily targets medium-to-high temperature pressure pipelines, ensuring that the pipe material maintains good strength and durability under prolonged high temperatures.
P22 is a typical alloy steel grade under the ASTM A335 standard, belonging to the 2.25Cr–1Mo alloy steel, suitable for medium-to-high temperature and high-pressure environments.
II. Chemical Composition and Mechanical Properties of ASTM A335 P22 Alloy Steel Pipe
i. Chemical Composition
| Element | Content Range (%) |
|---|---|
| Carbon (C) | 0.05–0.15 |
| Manganese (Mn) | 0.30–0.60 |
| Silicon (Si) | 0.10–0.50 |
| Sulfur (S) | ≤0.025 |
| Phosphorus (P) | ≤0.025 |
| Chromium (Cr) | 2.00–2.50 |
| Molybdenum (Mo) | 0.85–1.05 |
| Nickel (Ni) | ≤0.40 |
| Copper (Cu) | ≤0.40 |
Note: The chemical composition may vary slightly depending on the manufacturer and heat treatment process.
ii. Mechanical properties
| Property | Value |
|---|---|
| Yield Strength | ≥ 205 MPa |
| Tensile Strength | 415–585 MPa |
| Elongation | ≥ 20% |
| Impact Toughness (Charpy V-notch) | ≥ 27 J @ 0°C (room temperature) |
P22 piping can be optimized for strength and toughness through normalizing or normalizing + tempering heat treatment, making it suitable for long-term operation at temperatures below 540°C.
III. Application Scenarios for ASTM A335 P22 Alloy Steel Pipes
1. Boiler Main Steam Pipelines
- Selection Recommendation: Use P22 seamless pipes, with wall thickness selected based on design pressure and temperature, and length customized to specifications.
- Reasoning: P22 steel has a 2.25Cr–1Mo alloy composition, which can withstand high-temperature and high-pressure steam, has good creep resistance, and will not undergo excessive deformation during long-term use. Compared to P11, it is more suitable for medium-to-high temperature environments, while costing less than P91/P92.
2. Boiler Reheat Steam Pipes
- Selection Recommendation: Use P22 seamless steel pipes, paying attention to preheating during welding and post-weld heat treatment to ensure consistent mechanical properties between the weld and the base metal.
- Reasoning: Reheat steam temperatures are high, and P22’s temperature resistance can meet operating requirements below 540°C. It has good welding performance, is easy to construct, and can extend the service life of the pipeline.
3. Heat Exchanger Piping
- Selection Recommendation: Wall thickness should be selected based on medium pressure and flow rate, and the surface can be treated for corrosion resistance or wear resistance.
- Reasoning: The medium in heat exchangers is often high-temperature steam or hot oil. P22 has high high-temperature strength and good toughness, and can resist thermal stress changes and corrosion. It has low construction and maintenance costs and is suitable for long-term operation.
4. High-Temperature Chemical Pipelines
- Selection Recommendations: Choose whether to use internal lining or surface treatment based on the corrosiveness of the medium, while ensuring a safety factor under the design pressure.
- Reasoning: High-temperature chemical pipelines require both temperature resistance and a certain degree of corrosion resistance. P22 is suitable for general acid and alkaline media, can withstand temperature and pressure changes, and is cost-effective, making it suitable for medium-to-high temperature conditions.
5. Auxiliary Steam System Piping (e.g., feedwater, exhaust steam pipes)
- Selection Recommendations: P22 or P11 can be selected, depending on temperature, pressure, and cost-effectiveness. Wall thickness can be appropriately reduced for non-critical pipelines.
- Reasoning: Auxiliary steam pipelines have lower pressure. P22 ensures long-term heat resistance, while offering reasonable processing and installation costs and ease of maintenance.
6. Medium-Temperature, High-Pressure Pipelines in Power Plants
- Selection Recommendations: P22 seamless pipes are preferably normalized or normalized + tempered to ensure long-term creep resistance.
- Reasoning: When operating at around 500°C for extended periods, P22 maintains pipeline structural strength, reduces maintenance frequency, and offers a better cost-performance ratio than P91/P92, making it suitable for non-critical high-temperature pipelines.
